| B/F系列产品 | |||||||

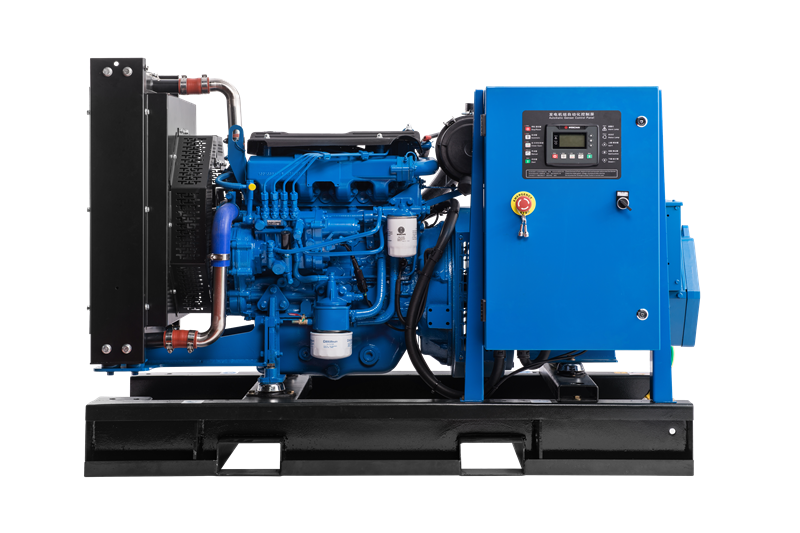

| 1 潍柴全新一代轻型柴油发电机组 Weichai new generation light diesel gen-sets 3 低排放、低噪音，优良的环保性能 Low emissions,low noise,good environmental protection performance 5 适合多种应用场景的结构/功能解决方案 Professional structure/function solution for varieties of scenarios | 2 高可靠性，高功率密度 High reliability,high power density 4 专业的发电机组应用集成能力 Professional application & integration capabilities for gen-sts 6 具备国内各类产品认证资质以及CE认证 Have kinds of domestic product certification and CE certification | ||||||
| 机组型号Gensets Model | WPG13.5B1 | WPG16.5B1 | WPG21B1 | WPG22B1 | WPG27.5B1 | WPG33B1 | WPG41B1 |
| 额定功率/容量(kW/kVA) Rated Power/Capacity | 10/12.5 | 12/15 | 15/19 | 16/20 | 20/25 | 24/30 | 30/37.5 |
| 备用功率/容量(kW/kVA) Standby Power/Capacity | 11/13.5 | 13.2/16.5 | 16.5/21 | 17.6/22 | 22/27.5 | 26.4/33 | 33/41 |
| 发动机型号Engine Model | WP2.1D18E2 | WP2.1D18E2 | WP2.3D25E200 | WP2.3D25E200 | WP2.3D33E200 | WP2.3D33E200 | WP2.3D40E200 |
| 额定功率(kW)Rated Power | 17.5 | 17.5 | 23 | 23 | 30 | 30 | 36 |
| 备用功率（kW）Standby Power | 19.2 | 19.2 | 25 | 25 | 33 | 33 | 40 |
| 气缸数-缸径×行程(mm) Cylinder No.-Bore×Stroke | 4-85×92 | 4-89×92 | |||||
| 排量（L）Displacement | 2.1 | 2.3 | |||||
| 启动方式Starting Method | DC12V电启动 Electrical Starting | ||||||
| 调速方式Speed Governor | 机械调速/电子调速 Mechanical/Electronic | ||||||
| 进气方式Intake Way | 自然吸气 Naturally Aspirated | 自然吸气 Naturally Aspirated | 涡轮增压 Turbocharged | ||||
| 机油容量(L)Oil Capacity | 8.5 | ||||||
| 冷却液容量（L） Coolant Capacity | 11.5 | ||||||
| 经济燃油消耗率(g/kW.h) Economic Fuel Consumption | 220 | 215 | |||||
| 额定电压（V） Rated Voltage | 400/230 | ||||||
| 频率(Hz)Frequency | 50 | ||||||
| 额定电流(A)Rated Current | 18 | 22 | 27 | 29 | 36 | 43 | 54 |
| 额定功率因数Rated Factor | 0.8（滞后lag） | ||||||
| 相数及接法 Phase No.& Connection | 三相四线，星型接法 3P4W,Y Style Connection | ||||||
| 调压方式 Voltage Regulation Mode | 自动调压AVR | ||||||
